Android Reverse Engineering: an Introductory Guide to Malware Analysis
The Android malware has followed an exponential growth rate in recent years, in parallel
with the degree of penetration of this system in different markets. Currently, over 90% of the
threats to mobile devices have Android as a main target. This scenario has led to the demand
for professionals with a very specific knowledge on this platform.
The software reverse engineering, according to Chikofsky and Cross [1], refers to the process of analyzing a system to identify its components and their interrelationships, and create representations of the system in another form or a higher level of abstraction. Thus, the purpose of reverse engineering is not to make changes or to replicate the system under analysis, but to understand how it was built.
The best way to tackle a problem of reverse engineering is to consider how we would have built the system in question. Obviously, the success of the mission depends largely on the level of experience we have in building similar systems to the analyzed system. Moreover, knowledge of the right tools we will help in this process.
In this article we describe tools and techniques that will allow us, through a reverse engineering process, identify malware in Android applications.
To execute the process of reverse engineering over an application, we can use two types of techniques: static analysis and / or dynamic analysis. Both techniques are complementary, and the use of both provides a more complete and efficient vision on the application being discussed. In this article we focus only on static analysis phase, ie, we will focus on the analysis of the application by analyzing its source code, and without actually running the application.
Static analysis of Android application starts from the moment you have your APK file (Application
PacKage). APK is the extension used to distribute and install applications for the Android platform.
The APK format is similar to the JAR (Java ARchive) format and contains the packaged files required by the application.
If we unzip an APK file (for example, an APK corresponding to the application “Iron Man 3 Live Wallpaper” available at Play Store: https://play.google.com/store/apps/details?id=cellfish.ironman3wp&hl=en):
$ unzip cellfish.ironman3wp.apk
typically we will find the following resources: Figure 1.
An interesting resource is the “AndroidManifest.xml” file. In this XML file, all specifications of our application are declared, including Activities, Intents, Hardware, Services, Permissions required by the application [2], etc. Note that this is a binary XML file, so if you want to read easily its contents you should convert it to a humanreadable XML format.
The “AXMLPrinter2.jar” tool performs this task:
$ java –jar AXMLPrinter2.jar AndroidManifest.xml > AndroidManifest.xml.txt
$ less AndroidManifest.xml.txt
Another important resource that we find in any APK is the “classes.dex” file. This is a formatted DEX (Dalvik EXecutable) file containing the bytecodes that understands the DVM (Dalvik Virtual Machine).
Dalvik is the virtual machine that runs applications and code written in Java, created specifically for the Android platform.
Since we want to analyze the source code of the application, we need to convert the DEX format to Java source code. To do this we will pass through an intermediate state.
We will convert the DEX format to the compiled Java code (.class). Many tools exist for this purpose. One of the most used is “dex2jar”. This tool takes as input the APK file and generates a JAR file as output:
$ /vad/tools/dex2jar/d2j-dex2jar.sh cellfish.ironman3wp.apk
dex2jar cellfish.ironman3wp.apk -> cellfish.ironman3wp-dex2jar.jar
Now we only need to decompile the Java classes to get the source code. To do this, we can use the “JD-GUI” tool (Figure 3):
$ /vad/tools/jd-gui/jdgui cellfish.ironman3wp-dex2jar.jar
One of the first observations we draw from decompiling the Java code in our example, is the fact that it has used some code obfuscation tool that complicates the process of analyzing the application. The most common tools are “ProGuard” [3] and “DexGuard” [4].
Although these tools are commonly used to provide an additional layer of security and hinder the reverse engineering process, these applications can also be used in order to optimize the code and get a APK of a smaller size (e.g. optimizing the bytecode eliminating unused instructions, renaming the class name, fields, and methods using short meaningless names, etc.).
In our example, we can deduce that the developers have used “ProGuard” (open source tool) because we canvobserve that some of the features offered by “DexGuard” have not been implemented in the analyzed code:
• The strings are not encrypted
• The code associated with logging functionality is not removed
• No encrypted files exist in the /assets resource
• There are no classes that have been entirely encrypted
Once we have access to source code, we can try to better understand how the application is built. “JD-GUI” allows us to save the entire application source code in a ZIP file, so you can perform new operations on this code using other tools. For example, to search for key terms on the entire code using the “grep” utility from the command line.
Although “JD-GUI” allows us to browse the entire hierarchy of objects in a comfortable manner,
we generally find applications where there is a large number of Java classes to analyze, so we need
to rely on other tools to facilitate the understanding of the code .

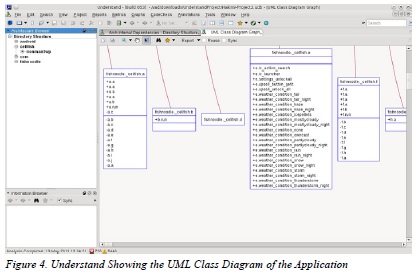

Following the aim that defined Chikofsky and Cross in reverse engineering, which is none other than
that of understanding how the application is built, there is a tool that will help us greatly in this regard:“Understand”.
According to the website itself, “Understand” is a static analysis tool for maintaining, measuring and
analyzing critical or large code bases. Although is not purely a security tool (do not expect to use it as
a vulnerability scanner), it helps us to understand the application code, which is our goal (Figure 4).
There are several online tools that have a similar purpose. For example, “Dexter” gives us detailed
information about the application we want to analyze. As with any online service, our analysis is exposed to third party who can get to make use of our work, so we should always keep this in mind.
With the “Dexter” tool, it’s as simple as registering, create a project and uploading the APK that we want to analyze. After the analysis, we can view information such as the following:
• Package dependency graph
• List of classes
• List of strings used by the application
• Defined permissions and used permissions
• Activities, Services, Broadcast Receivers, Content Providers
• Statistical data (percentage of obfuscated packages, use of internal versus external packages, classes
per package, etc.).
Possibly, the power of this tool lies in its ease of use (all actions are performed through the browser)
and navigating the class diagram and application objects (Figure 5).
Malware Identification in the Play Store
It’s not a secret that Google’s official store (the Play Store, which we have received an update in late April this year), hosts malware. Now, how do we identify those malicious applications? How do we know what they are really doing? Let us then learn how to answer these questions.
The techniques for introducing malware on a mobile application can be summarized in the following:
• Exploit any vulnerability in the web server hosting the official store (typically, for example, taking
advantage of a XSS vulnerability)
• Enter malware in an application available at the official store (most users trust it and can be downloaded by a large number of potential users)
• Install not malicious applications that at some point installs malware (eg, include additional levels with malware into a widespread game)
• Use alternatives to official stores to post applications containing malware (usually, offering free
applications that are not free in the official store)
When we talk about how to introduce malware into an application, we can refer to two different scenarios:
• The published application contains code that exploits a vulnerability in the device, or
• The published application does not exploit any vulnerability, but contains code that can perform malicious actions and, therefore, the user is warned of the permissions required by the application as a step prior to installation.
In this article we focus on the second case: application with malicious code that exploits the user’s trust.
How to Identify Malicious Applications on the Play Store
A malicious application includes code that performs some action not expected by the user. For example, if a user downloads from the official store an application to change the wallpaper of his device, the user does not expect that this app can read his emails, make phone calls or send SMS messages to premium accounts, for example.
A tool that allows us to quickly assess the existence of malicious code is “VirusTotal” [5]. For example, if we use the service offered by “VirusTotal” to analyze the APK of the “Wallpaper & Background Browser” application of the “Start-App” company, and available in the Play Store (https://play.google.com/store/apps/ details?id=com.startapp.wallpaper.browser), we note that 12 of the 46 supported antivirus by this service, detect malicious code in the application. Exactly, the following:
• AhnLab-V3. Result: Android-PUP/Plankton
• AVG. Result: Android/Plankton
• Commtouch. Result: AndroidOS/Plankton.A.gen! Eldorado
• Comodo. Result: UnclassifiedMalware
• DrWeb. Result: Adware.Startapp.5.origin
• ESET-NOD32. Result: a variant of Android/Plankton.I
• F-Prot. Result: AndroidOS/Plankton.D
• F-Secure. Result: Application:Android/Counterclank
• Fortinet. Result: Android/Plankton.A!tr
• Sophos. Result: Andr/NewyearL-B
• TrendMicro-HouseCall. Result: TROJ_GEN.F47V0830
• VIPRE. Result: Trojan.AndroidOS.Generic.A (Figure 6)
Here’s another example. If we search at the Play Store the “Cool Live Wallpaper” application (https://play.google.com/store/apps/details?id=com.ownskin.diy_01zti0rso7rb), developed by “Brankhox”, we find the following information:
Package
com.ownskin.diy_01zti0rso7rb
Permissions
android.permission.INTERNET
android.permission.READ_PHONE_STATE
android.permission.ACCESS_NETWORK_STATE
android.permission.WRITE_EXTERNAL_STORAGE
android.permission.READ_SMS
android.permission.READ_CONTACTS
com.google.android.gm.permission.READ_GMAIL
android.permission.GET_ACCOUNTS
android.permission.ACCESS_WIFI_STATE
Potential malicious activities
• The application has the ability to read text messages (SMS or MMS)
• The application has the ability to read mail from Gmail
• The application has the ability to access user contacts
The questions we must ask are why and for what purpose does the application need these permissions, like reading my email or access my contacts? Is it really as intrusive as it sounds?
We will use some of the tools described above, to reverse engineer this application and see if it is using some of the more sensitive permissions that it requests.
Step 1: Get the APK file of the application
There are multiple ways to obtain an APK:
• Downloading an unofficial APK
• Google: we can use the Google search engine to locate the APK.
• Unofficial repositories: we can find the APK in several alternative markets [6] or other repositories like 4shared.com, apkboys.com, apkmania.co, aplicacionesapk.com, aptoide.com, flipkart.asia, etc.
• Downloading an official APK
• Real APK Leecher [7]: This tool allows us to download the official APK for some applications.
• SaveAPK [8]: This tool (required to have previously installed the „OI File Manager” application)
available on the Play Store, lets us generate the APK if we have previously installed application on the device.
• Astro File Manager [9]: This tool is available in the Play Store, and we can get the APK if we have previously installed the application on the device. When performing a backup of the application, the APK is stored in the directory that is defined for backup.
Given the risk involved in dealing with malware, if we choose the option to download the APK existing in the Play Store from a previous installation of the application, we should use preferably an emulator [10] or a device of our test lab (Figure 7).
Step 2: Convert the application from the Dalvik Executable format (.dex) to Java classes (.class)
The idea is to have the application code into a human-readable format. In this case, we use the “dex2jar” tool to convert the format Android to the Java format:
$ /vad/tools/d2j-dex2jar.sh com.ownskin.diy_01zti0rso7rb.apk
dex2jar com.ownskin.diy_01zti0rso7rb.apk ->
com.ownskin.diy_01zti0rso7rb-dex2jar.jar
Step 3: Decompile the Java code
Using a Java decompiler (like “JD-GUI”), we can obtain the Java source code from the .class files.
In our case, we will choose a fast track. “JD-GUI” allows us to save the entire application source code in a ZIP file. We’ll keep this file as “com.ownskin.diy_01zti0rso7rb-dex2jar.src.zip”, and unzip it to perform a manual scan.
We note that there are 353 Java source files:
$ find /vad/lab/Android/com.ownskin.diy_01zti0rso7rb-dex2jar.src/ -type f | wc -l
353
Step 4: Find malicious code in the application
We can now search in any resource of the application to identify strings that may be susceptible of being used for malicious purposes. For example, we have previously identified that this application sought permission to read SMS messages. Let’s see if the application actually use this permission (Listing 1).
Listing 1. Finding Malicious Code in the Application
$ cd /vad/lab/Android/com.ownskin.diy_01zti0rso7rb-dex2jar.src/
$ grep -i sms -r *
com/ownskin/diy_01zti0rso7rb/ht.java:import android.telephony.SmsMessage;
com/ownskin/diy_01zti0rso7rb/ht.java: SmsMessage[] arrayOfSmsMessage = new
SmsMessage[arrayOfObject.length];
com/ownskin/diy_01zti0rso7rb/ht.java: arrayOfSmsMessage[0] = SmsMessage.
createFromPdu((byte[])arrayOfObject[0]);
com/ownskin/diy_01zti0rso7rb/ht.java: hs.a(this.a, arrayOfSmsMessage[0].getOriginatingAddress());
com/ownskin/diy_01zti0rso7rb/ht.java: hs.c(this.a, arrayOfSmsMessage[0].getMessageBody());
com/ownskin/diy_01zti0rso7rb/hm.java: if (!”SMS_MMS”.equalsIgnoreCase(this.U))
com/ownskin/diy_01zti0rso7rb/hm.java: a(Uri.parse(“content://sms”));
com/ownskin/diy_01zti0rso7rb/hs.java: Uri localUri = Uri.parse(“content://sms”);
com/ownskin/diy_01zti0rso7rb/hs.java: this.P.l().registerReceiver(this.ac, new
IntentFilter(“android.provider.Telephony.SMS_RECEIVED”));
Using the “grep” command, we identified that the following resources (Java classes) seem to contain some code that allows read access to the user’s SMS:
• com/ownskin/diy_01zti0rso7rb/hm.java
• com/ownskin/diy_01zti0rso7rb/hs.java
• com/ownskin/diy_01zti0rso7rb/ht.java
Let’s see the source code detail of these resources in JD-GUI:
• com/ownskin/diy_01zti0rso7rb/hm.java
…
if (!”SMS_MMS”.equalsIgnoreCase(this.U))
break label89;
a(Uri.parse(“content://sms”));
a(Uri.parse(“content://mms”));
…
• com/ownskin/diy_01zti0rso7rb/hs.java
It creates a „localUri” object of the “Uri” class, calling the “parse” method to be used in the query to the Content Provider that allows to access to the SMS inbox:
…
public static final Uri a = localUri;
public static final Uri b = Uri.withAppendedPath(localUri, “inbox”);
…
static
{
Uri localUri = Uri.parse(“content://sms”);
}
and registers a Receiver to be notified of the received SMS:
…this.P.l().registerReceiver(this.ac,new IntentFilter(“android.provider.Telephony.SMS_
RECEIVED”));
…• com/ownskin/diy_01zti0rso7rb/ht.java
This class implements a Broadcast Receiver. This is simply an Android component that allows the
registered Receiver to be notified of events produced in the system or in the application itself.
In this case, the implemented Receiver is capable of receiving input SMS messages. And this notification occurs before the internal SMS management application receives the SMS messages. This scenario is used by some malware, for example, to perform some action and then delete the received message before it is processed by the messaging application and be detected by the user.
In this example, when the user receives an SMS, the application will identify its source and read the message, as shown in the following code:
Listing 2. When the User Receives an SMS, the Application Will Identify its Source and Read the Message
…
public final void onReceive(Context paramContext, Intent paramIntent)
{
Object[] arrayOfObject = (Object[])paramIntent.getExtras().get(“pdus”);
SmsMessage[] arrayOfSmsMessage = new SmsMessage[arrayOfObject.length];
if (arrayOfObject.length > 0)
{
arrayOfSmsMessage[0] = SmsMessage.createFromPdu((byte[])arrayOfObject[0]);
hs.a(this.a, arrayOfSmsMessage[0].getOriginatingAddress());
hs.b(this.a, go.a(this.a.P.l(), hs.a(this.a)));
if ((hs.b(this.a) == null) || (hs.b(this.a).length() == 0))
hs.b(this.a, hs.a(this.a));
hs.c(this.a, arrayOfSmsMessage[0].getMessageBody());
hs.c(this.a);
}
}
…
As we can see (at this point, we can complete the process of analysis of the application by a dynamic
analysis of it), in fact, the application accesses our SMS messages. However, it’s important to recall that we have accepted that the application can perform these actions, because we have accepted the permissions required and the application has informed us of this situation prior to installation.
Similarly, we can verify when any application makes use of the various permits requested, with particular attention to those that may affect our privacy or which may result in a cost to us.
Some people see no malware in this type of application that take advantage of user trust, and it has
been the subject of controversy on more than one occasion. In any case, Google has decided to remove applications from the Play Store that can abuse permits that require to be confirmed by users who wish to use them. That does not mean, on the other hand, that such applications still exist in Google’s official store (Table 1).
The Android malware has followed an exponential growth rate in recent years, in parallel
with the degree of penetration of this system in different markets. Currently, over 90% of the
threats to mobile devices have Android as a main target. This scenario has led to the demand
for professionals with a very specific knowledge on this platform.
The software reverse engineering, according to Chikofsky and Cross [1], refers to the process of analyzing a system to identify its components and their interrelationships, and create representations of the system in another form or a higher level of abstraction. Thus, the purpose of reverse engineering is not to make changes or to replicate the system under analysis, but to understand how it was built.
The best way to tackle a problem of reverse engineering is to consider how we would have built the system in question. Obviously, the success of the mission depends largely on the level of experience we have in building similar systems to the analyzed system. Moreover, knowledge of the right tools we will help in this process.
In this article we describe tools and techniques that will allow us, through a reverse engineering process, identify malware in Android applications.
To execute the process of reverse engineering over an application, we can use two types of techniques: static analysis and / or dynamic analysis. Both techniques are complementary, and the use of both provides a more complete and efficient vision on the application being discussed. In this article we focus only on static analysis phase, ie, we will focus on the analysis of the application by analyzing its source code, and without actually running the application.
Static analysis of Android application starts from the moment you have your APK file (Application
PacKage). APK is the extension used to distribute and install applications for the Android platform.
The APK format is similar to the JAR (Java ARchive) format and contains the packaged files required by the application.
If we unzip an APK file (for example, an APK corresponding to the application “Iron Man 3 Live Wallpaper” available at Play Store: https://play.google.com/store/apps/details?id=cellfish.ironman3wp&hl=en):
$ unzip cellfish.ironman3wp.apk
typically we will find the following resources: Figure 1.
An interesting resource is the “AndroidManifest.xml” file. In this XML file, all specifications of our application are declared, including Activities, Intents, Hardware, Services, Permissions required by the application [2], etc. Note that this is a binary XML file, so if you want to read easily its contents you should convert it to a humanreadable XML format.
The “AXMLPrinter2.jar” tool performs this task:
$ java –jar AXMLPrinter2.jar AndroidManifest.xml > AndroidManifest.xml.txt
$ less AndroidManifest.xml.txt
Another important resource that we find in any APK is the “classes.dex” file. This is a formatted DEX (Dalvik EXecutable) file containing the bytecodes that understands the DVM (Dalvik Virtual Machine).
Dalvik is the virtual machine that runs applications and code written in Java, created specifically for the Android platform.
Since we want to analyze the source code of the application, we need to convert the DEX format to Java source code. To do this we will pass through an intermediate state.
We will convert the DEX format to the compiled Java code (.class). Many tools exist for this purpose. One of the most used is “dex2jar”. This tool takes as input the APK file and generates a JAR file as output:
$ /vad/tools/dex2jar/d2j-dex2jar.sh cellfish.ironman3wp.apk
dex2jar cellfish.ironman3wp.apk -> cellfish.ironman3wp-dex2jar.jar
Now we only need to decompile the Java classes to get the source code. To do this, we can use the “JD-GUI” tool (Figure 3):
$ /vad/tools/jd-gui/jdgui cellfish.ironman3wp-dex2jar.jar
One of the first observations we draw from decompiling the Java code in our example, is the fact that it has used some code obfuscation tool that complicates the process of analyzing the application. The most common tools are “ProGuard” [3] and “DexGuard” [4].
Although these tools are commonly used to provide an additional layer of security and hinder the reverse engineering process, these applications can also be used in order to optimize the code and get a APK of a smaller size (e.g. optimizing the bytecode eliminating unused instructions, renaming the class name, fields, and methods using short meaningless names, etc.).
In our example, we can deduce that the developers have used “ProGuard” (open source tool) because we canvobserve that some of the features offered by “DexGuard” have not been implemented in the analyzed code:
• The strings are not encrypted
• The code associated with logging functionality is not removed
• No encrypted files exist in the /assets resource
• There are no classes that have been entirely encrypted
Once we have access to source code, we can try to better understand how the application is built. “JD-GUI” allows us to save the entire application source code in a ZIP file, so you can perform new operations on this code using other tools. For example, to search for key terms on the entire code using the “grep” utility from the command line.
Although “JD-GUI” allows us to browse the entire hierarchy of objects in a comfortable manner,
we generally find applications where there is a large number of Java classes to analyze, so we need
to rely on other tools to facilitate the understanding of the code .
Following the aim that defined Chikofsky and Cross in reverse engineering, which is none other than
that of understanding how the application is built, there is a tool that will help us greatly in this regard:“Understand”.
According to the website itself, “Understand” is a static analysis tool for maintaining, measuring and
analyzing critical or large code bases. Although is not purely a security tool (do not expect to use it as
a vulnerability scanner), it helps us to understand the application code, which is our goal (Figure 4).
There are several online tools that have a similar purpose. For example, “Dexter” gives us detailed
information about the application we want to analyze. As with any online service, our analysis is exposed to third party who can get to make use of our work, so we should always keep this in mind.
With the “Dexter” tool, it’s as simple as registering, create a project and uploading the APK that we want to analyze. After the analysis, we can view information such as the following:
• Package dependency graph
• List of classes
• List of strings used by the application
• Defined permissions and used permissions
• Activities, Services, Broadcast Receivers, Content Providers
• Statistical data (percentage of obfuscated packages, use of internal versus external packages, classes
per package, etc.).
Possibly, the power of this tool lies in its ease of use (all actions are performed through the browser)
and navigating the class diagram and application objects (Figure 5).
Malware Identification in the Play Store
It’s not a secret that Google’s official store (the Play Store, which we have received an update in late April this year), hosts malware. Now, how do we identify those malicious applications? How do we know what they are really doing? Let us then learn how to answer these questions.
The techniques for introducing malware on a mobile application can be summarized in the following:
• Exploit any vulnerability in the web server hosting the official store (typically, for example, taking
advantage of a XSS vulnerability)
• Enter malware in an application available at the official store (most users trust it and can be downloaded by a large number of potential users)
• Install not malicious applications that at some point installs malware (eg, include additional levels with malware into a widespread game)
• Use alternatives to official stores to post applications containing malware (usually, offering free
applications that are not free in the official store)
When we talk about how to introduce malware into an application, we can refer to two different scenarios:
• The published application contains code that exploits a vulnerability in the device, or
• The published application does not exploit any vulnerability, but contains code that can perform malicious actions and, therefore, the user is warned of the permissions required by the application as a step prior to installation.
In this article we focus on the second case: application with malicious code that exploits the user’s trust.
How to Identify Malicious Applications on the Play Store
A malicious application includes code that performs some action not expected by the user. For example, if a user downloads from the official store an application to change the wallpaper of his device, the user does not expect that this app can read his emails, make phone calls or send SMS messages to premium accounts, for example.
A tool that allows us to quickly assess the existence of malicious code is “VirusTotal” [5]. For example, if we use the service offered by “VirusTotal” to analyze the APK of the “Wallpaper & Background Browser” application of the “Start-App” company, and available in the Play Store (https://play.google.com/store/apps/ details?id=com.startapp.wallpaper.browser), we note that 12 of the 46 supported antivirus by this service, detect malicious code in the application. Exactly, the following:
• AhnLab-V3. Result: Android-PUP/Plankton
• AVG. Result: Android/Plankton
• Commtouch. Result: AndroidOS/Plankton.A.gen! Eldorado
• Comodo. Result: UnclassifiedMalware
• DrWeb. Result: Adware.Startapp.5.origin
• ESET-NOD32. Result: a variant of Android/Plankton.I
• F-Prot. Result: AndroidOS/Plankton.D
• F-Secure. Result: Application:Android/Counterclank
• Fortinet. Result: Android/Plankton.A!tr
• Sophos. Result: Andr/NewyearL-B
• TrendMicro-HouseCall. Result: TROJ_GEN.F47V0830
• VIPRE. Result: Trojan.AndroidOS.Generic.A (Figure 6)
Here’s another example. If we search at the Play Store the “Cool Live Wallpaper” application (https://play.google.com/store/apps/details?id=com.ownskin.diy_01zti0rso7rb), developed by “Brankhox”, we find the following information:
Package
com.ownskin.diy_01zti0rso7rb
Permissions
android.permission.INTERNET
android.permission.READ_PHONE_STATE
android.permission.ACCESS_NETWORK_STATE
android.permission.WRITE_EXTERNAL_STORAGE
android.permission.READ_SMS
android.permission.READ_CONTACTS
com.google.android.gm.permission.READ_GMAIL
android.permission.GET_ACCOUNTS
android.permission.ACCESS_WIFI_STATE
Potential malicious activities
• The application has the ability to read text messages (SMS or MMS)
• The application has the ability to read mail from Gmail
• The application has the ability to access user contacts
The questions we must ask are why and for what purpose does the application need these permissions, like reading my email or access my contacts? Is it really as intrusive as it sounds?
We will use some of the tools described above, to reverse engineer this application and see if it is using some of the more sensitive permissions that it requests.
Step 1: Get the APK file of the application
There are multiple ways to obtain an APK:
• Downloading an unofficial APK
• Google: we can use the Google search engine to locate the APK.
• Unofficial repositories: we can find the APK in several alternative markets [6] or other repositories like 4shared.com, apkboys.com, apkmania.co, aplicacionesapk.com, aptoide.com, flipkart.asia, etc.
• Downloading an official APK
• Real APK Leecher [7]: This tool allows us to download the official APK for some applications.
• SaveAPK [8]: This tool (required to have previously installed the „OI File Manager” application)
available on the Play Store, lets us generate the APK if we have previously installed application on the device.
• Astro File Manager [9]: This tool is available in the Play Store, and we can get the APK if we have previously installed the application on the device. When performing a backup of the application, the APK is stored in the directory that is defined for backup.
Given the risk involved in dealing with malware, if we choose the option to download the APK existing in the Play Store from a previous installation of the application, we should use preferably an emulator [10] or a device of our test lab (Figure 7).
Step 2: Convert the application from the Dalvik Executable format (.dex) to Java classes (.class)
The idea is to have the application code into a human-readable format. In this case, we use the “dex2jar” tool to convert the format Android to the Java format:
$ /vad/tools/d2j-dex2jar.sh com.ownskin.diy_01zti0rso7rb.apk
dex2jar com.ownskin.diy_01zti0rso7rb.apk ->
com.ownskin.diy_01zti0rso7rb-dex2jar.jar
Step 3: Decompile the Java code
Using a Java decompiler (like “JD-GUI”), we can obtain the Java source code from the .class files.
In our case, we will choose a fast track. “JD-GUI” allows us to save the entire application source code in a ZIP file. We’ll keep this file as “com.ownskin.diy_01zti0rso7rb-dex2jar.src.zip”, and unzip it to perform a manual scan.
We note that there are 353 Java source files:
$ find /vad/lab/Android/com.ownskin.diy_01zti0rso7rb-dex2jar.src/ -type f | wc -l
353
Step 4: Find malicious code in the application
We can now search in any resource of the application to identify strings that may be susceptible of being used for malicious purposes. For example, we have previously identified that this application sought permission to read SMS messages. Let’s see if the application actually use this permission (Listing 1).
Listing 1. Finding Malicious Code in the Application
$ cd /vad/lab/Android/com.ownskin.diy_01zti0rso7rb-dex2jar.src/
$ grep -i sms -r *
com/ownskin/diy_01zti0rso7rb/ht.java:import android.telephony.SmsMessage;
com/ownskin/diy_01zti0rso7rb/ht.java: SmsMessage[] arrayOfSmsMessage = new
SmsMessage[arrayOfObject.length];
com/ownskin/diy_01zti0rso7rb/ht.java: arrayOfSmsMessage[0] = SmsMessage.
createFromPdu((byte[])arrayOfObject[0]);
com/ownskin/diy_01zti0rso7rb/ht.java: hs.a(this.a, arrayOfSmsMessage[0].getOriginatingAddress());
com/ownskin/diy_01zti0rso7rb/ht.java: hs.c(this.a, arrayOfSmsMessage[0].getMessageBody());
com/ownskin/diy_01zti0rso7rb/hm.java: if (!”SMS_MMS”.equalsIgnoreCase(this.U))
com/ownskin/diy_01zti0rso7rb/hm.java: a(Uri.parse(“content://sms”));
com/ownskin/diy_01zti0rso7rb/hs.java: Uri localUri = Uri.parse(“content://sms”);
com/ownskin/diy_01zti0rso7rb/hs.java: this.P.l().registerReceiver(this.ac, new
IntentFilter(“android.provider.Telephony.SMS_RECEIVED”));
Using the “grep” command, we identified that the following resources (Java classes) seem to contain some code that allows read access to the user’s SMS:
• com/ownskin/diy_01zti0rso7rb/hm.java
• com/ownskin/diy_01zti0rso7rb/hs.java
• com/ownskin/diy_01zti0rso7rb/ht.java
Let’s see the source code detail of these resources in JD-GUI:
• com/ownskin/diy_01zti0rso7rb/hm.java
…
if (!”SMS_MMS”.equalsIgnoreCase(this.U))
break label89;
a(Uri.parse(“content://sms”));
a(Uri.parse(“content://mms”));
…
• com/ownskin/diy_01zti0rso7rb/hs.java
It creates a „localUri” object of the “Uri” class, calling the “parse” method to be used in the query to the Content Provider that allows to access to the SMS inbox:
…
public static final Uri a = localUri;
public static final Uri b = Uri.withAppendedPath(localUri, “inbox”);
…
static
{
Uri localUri = Uri.parse(“content://sms”);
}
and registers a Receiver to be notified of the received SMS:
…this.P.l().registerReceiver(this.ac,new IntentFilter(“android.provider.Telephony.SMS_
RECEIVED”));
…• com/ownskin/diy_01zti0rso7rb/ht.java
This class implements a Broadcast Receiver. This is simply an Android component that allows the
registered Receiver to be notified of events produced in the system or in the application itself.
In this case, the implemented Receiver is capable of receiving input SMS messages. And this notification occurs before the internal SMS management application receives the SMS messages. This scenario is used by some malware, for example, to perform some action and then delete the received message before it is processed by the messaging application and be detected by the user.
In this example, when the user receives an SMS, the application will identify its source and read the message, as shown in the following code:
Listing 2. When the User Receives an SMS, the Application Will Identify its Source and Read the Message
…
public final void onReceive(Context paramContext, Intent paramIntent)
{
Object[] arrayOfObject = (Object[])paramIntent.getExtras().get(“pdus”);
SmsMessage[] arrayOfSmsMessage = new SmsMessage[arrayOfObject.length];
if (arrayOfObject.length > 0)
{
arrayOfSmsMessage[0] = SmsMessage.createFromPdu((byte[])arrayOfObject[0]);
hs.a(this.a, arrayOfSmsMessage[0].getOriginatingAddress());
hs.b(this.a, go.a(this.a.P.l(), hs.a(this.a)));
if ((hs.b(this.a) == null) || (hs.b(this.a).length() == 0))
hs.b(this.a, hs.a(this.a));
hs.c(this.a, arrayOfSmsMessage[0].getMessageBody());
hs.c(this.a);
}
}
…
As we can see (at this point, we can complete the process of analysis of the application by a dynamic
analysis of it), in fact, the application accesses our SMS messages. However, it’s important to recall that we have accepted that the application can perform these actions, because we have accepted the permissions required and the application has informed us of this situation prior to installation.
Similarly, we can verify when any application makes use of the various permits requested, with particular attention to those that may affect our privacy or which may result in a cost to us.
Some people see no malware in this type of application that take advantage of user trust, and it has
been the subject of controversy on more than one occasion. In any case, Google has decided to remove applications from the Play Store that can abuse permits that require to be confirmed by users who wish to use them. That does not mean, on the other hand, that such applications still exist in Google’s official store (Table 1).
